3V ~ 24V 3A 72W Power Supply Adjustable DC 3V 5V 6V 9V 12V 15V 16V 18V 19V 20V 24V Variable Universal AC/DC Adapter 100V-240V AC to DC Converter with 14 Tips 5.5X2.5Mm 4.0X1.7Mm 3.5X1.35Mm Description Item model number SNT-0324-72 Amperage 3 Amps Total USB Ports 1 Color Black Connector Type Micro USB, USB Compatible Devices Cameras Item Weight 10.6 ounces Input Voltage 240 Volts Compatible Phone Models function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-3:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-3'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) }); })); LED strips, under-cabinet light, TV Box, smart speaks, wireless routers, essential oil diffuser humidifier, USB fan, Wifi camera, USB Hub, hard disk box, DC motor, DC pump, digital photo frame, DVR NVR surveillance system etc. See more Special Feature Short Circuit Protection Package Dimensions 8.19 x 2.8 x 2.64 inches Included Components 1x 72W Universal Power Supply Adapter, 14x DC Tips, 1x Reverse polarity converter cable

• 𝐈𝐧𝐩𝐮𝐭 𝐚𝐧𝐝 𝐎𝐮𝐭𝐩𝐮𝐭: Input: AC 100~240V, 50/60Hz ; Output: DC 3~24V Adjustable, Max 3A 72W ; It can supply with any voltage between 3~24V,such as 3V 4V 4.5V 5V 5.5V 6V 9V 12V 14V 15V 19V 20V 24V, etc and any amp less than 3A, such as 300mA, 500mA,1A, 1.5A, 2A, 2.5A, 3A. LCD display will show the output voltage, in case that wrong voltage regulation damage your device.
• 𝐔𝐩𝐠𝐫𝐚𝐝𝐞𝐝 𝐕𝐞𝐫𝐬𝐢𝐨𝐧 𝐏𝐨𝐰𝐞𝐫 𝐒𝐮𝐩𝐩𝐥𝐲: Based on hundreds of users feedback, we have made the following improvements: 1. The knob can be adjusted more evenly, and it can reach 13V ~ 14V by rotating 50%. 2. Increase the off gear to turn off the power without pulling the plug. 3.Add a polarity converter cable, which make it compatible with more devices，doubles its range of application.
• 𝟏𝟒𝐩𝐜𝐬 𝐅𝐫𝐞𝐪𝐮𝐞𝐧𝐭𝐥𝐲 𝐔𝐬𝐞𝐝 𝐓𝐢𝐩𝐬: It comes with an original 5.5x2.5mm tip and 14pcs frequently used tips: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector. Can be applied to almost all commonly used electronic devices. You can screw wires onto it easily, perfect for DIY projects.
• 𝐖𝐢𝐝𝐞 𝐑𝐚𝐧𝐠𝐞 𝐨𝐟 𝐀𝐩𝐩𝐥𝐢𝐜𝐚𝐭𝐢𝐨𝐧𝐬: The 72W all-in-one multipurpose AC/DC adapter fit for many 3~24V small household electronics such as LED strips, under-cabinet light, TV Box, smart speaks, wireless routers, essential oil diffuser humidifier, USB fan, Wifi camera, USB Hub, hard disk box, DC motor, DC pump, digital photo frame, DVR NVR surveillance system etc.For indoor use only.
• 𝐒𝐚𝐟𝐞𝐭𝐲 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐒𝐲𝐬𝐭𝐞𝐦𝐬: Built-in multiple safety protection systems. Automatic over voltage cut-off, over current cut-off, over temperature cut-off, short circuit cut-off. We focus on producing premium quality and safety power adapters. No noise, no spontaneous combustion, no explosion, no fire hazard, safe to use. 6ft long power cable makes it convenient to use.
• 𝐊𝐢𝐧𝐝𝐥𝐲 𝐍𝐨𝐭𝐞 𝐚𝐧𝐝 𝐖𝐨𝐫𝐫𝐲-𝐟𝐫𝐞𝐞 𝐒𝐡𝐨𝐩𝐩𝐢𝐧𝐠: Please choose correct voltage before plug it to your device. Wrong voltage may damage your device. We recommend to use less than 80% of the full load. We always stand behind our products. If there is any issue, please feel free to contact us. We have 30 days money back guarantee, 12 months exchange.

Product description

Parameter

• Input: AC 100V~240V 50/60Hz
• Output Voltage: DC 3V~24V Adjustable
• Output Current/Wattage: 3A, 72W Max
• Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")
• Reverse polarity converter: 5.5mm x 2.1mm
• 14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
• Power cable length: 7.7ft / 236cm
• Safety Compliance: FCC / CE/ RoHS / CCC
• Working Temperature: -10~40℃
• Weight: 0.66 lb / 300g

Package included

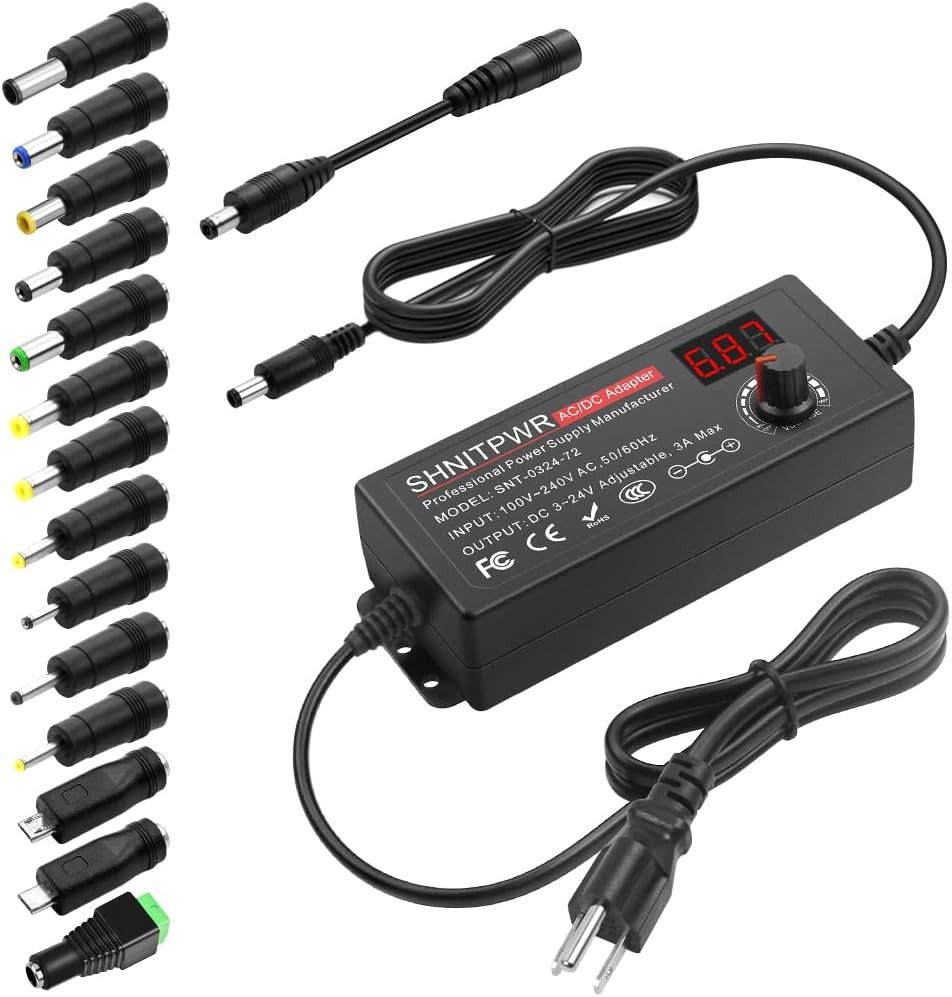

• 1x 72W Universal Power Supply Adapter; 14x DC Tips; 1x Reverse polarity converter cable

Attention Please:

1. Before connect it to your device, please adjust its output voltage to match the working voltage of your device.
2. Ensure that its output port size matches the size of your device's power input port. If you are unable to confirm, please let us know for assistance.
3. This product is an AC to DC adapter, not charger. Please don’t use it to charge devices with batteries.

Kindly note:

• Some user complained that voltage will change slightly without adjusting it. In fact, this is normal when your device is working. Besides, ambient temperature, magnetic field, signal noise will also affect output voltage. But the change is slight and acceptable. It will not damage most of the electronics.
• The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 3.5V~24.5V. Only in this way can your device really get 3V~24V voltage. This is the reason why we advertise the power supply's voltage range is 3V~24V, not 3.5V~24.5V.
• The 4cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devices’ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.

Is this 3~24V 72W universal power supply (PS) compatible with your device? 1. Check Voltage

Please find the spec label of your device and check the working voltage. It should be among 3V~24V DC, not lower than 3V or higher than 24V DC. Otherwise, your device will not work or be damaged.

2. Check Current

Check the max current your device will draw. It should be equal to or less than 3A, such as 1A, 1.5A, 2A, 2.5A, 3A. Otherwise, your device won’t work well and the PS will be damaged very soon.

3. Check Plugs

Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.

4. Check Original PS

If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
